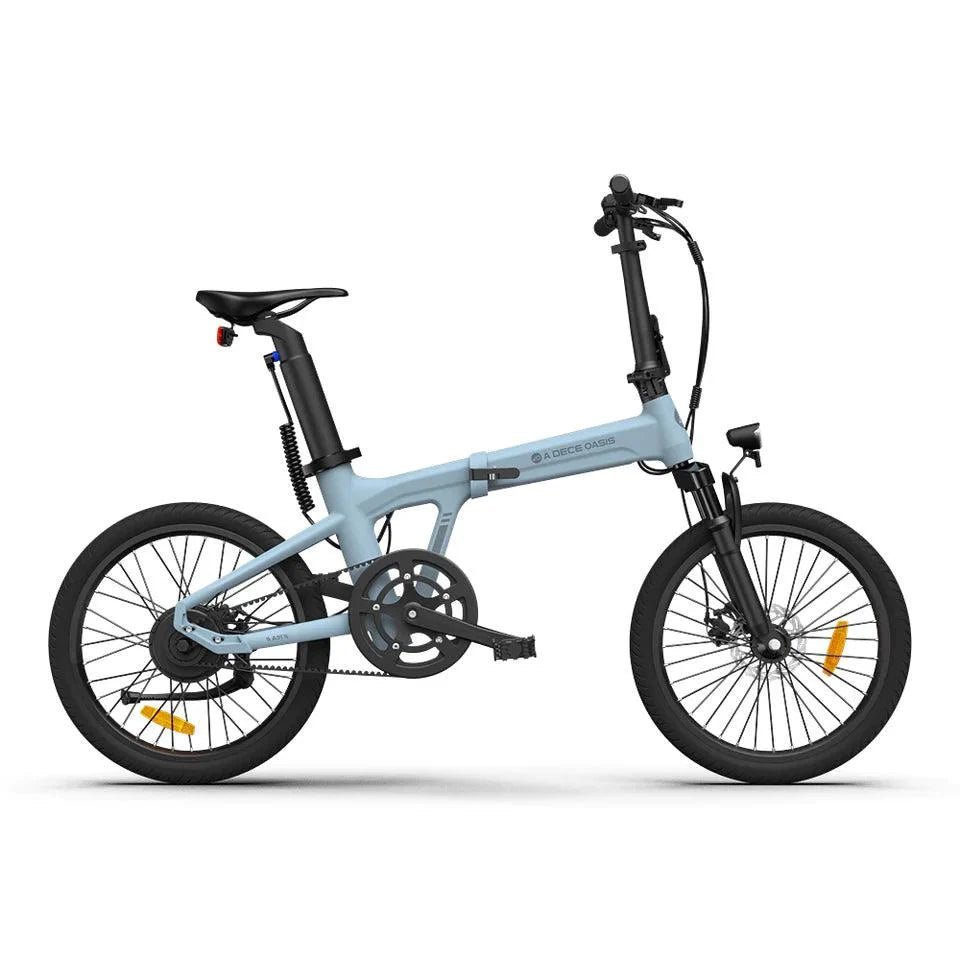

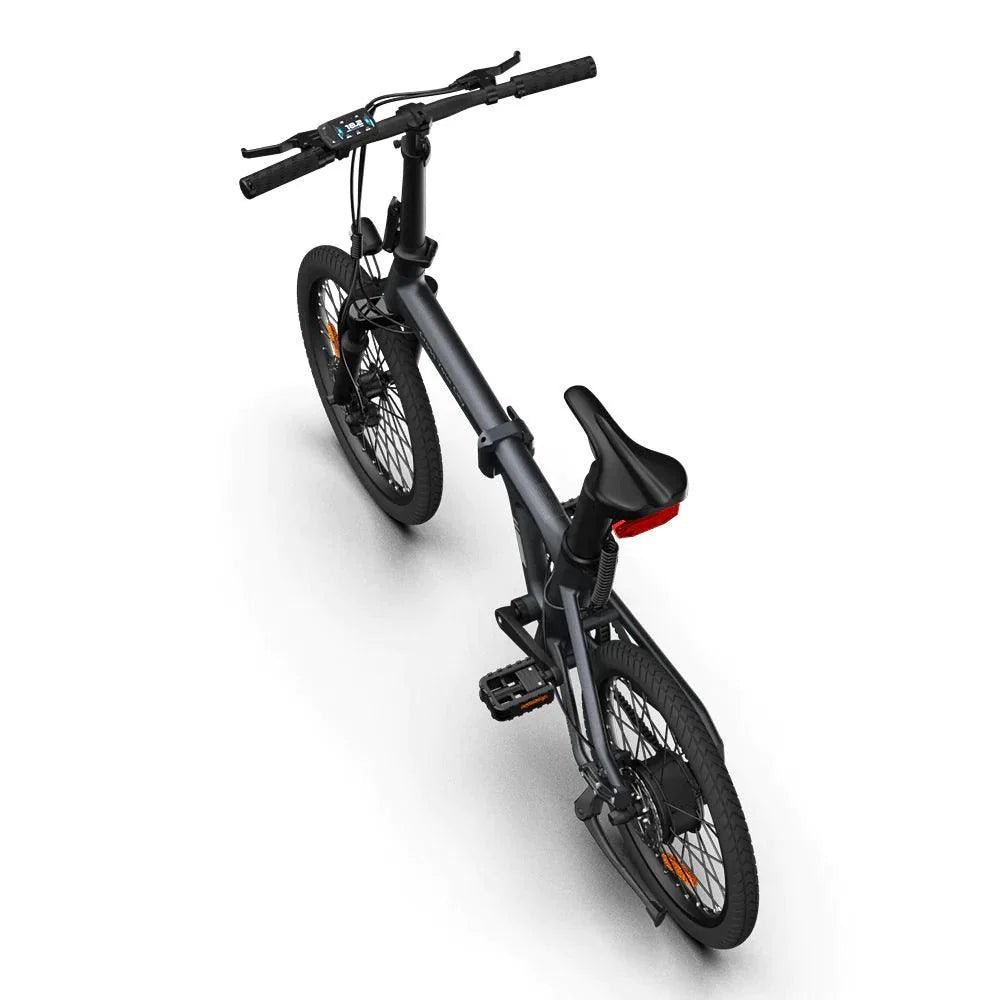

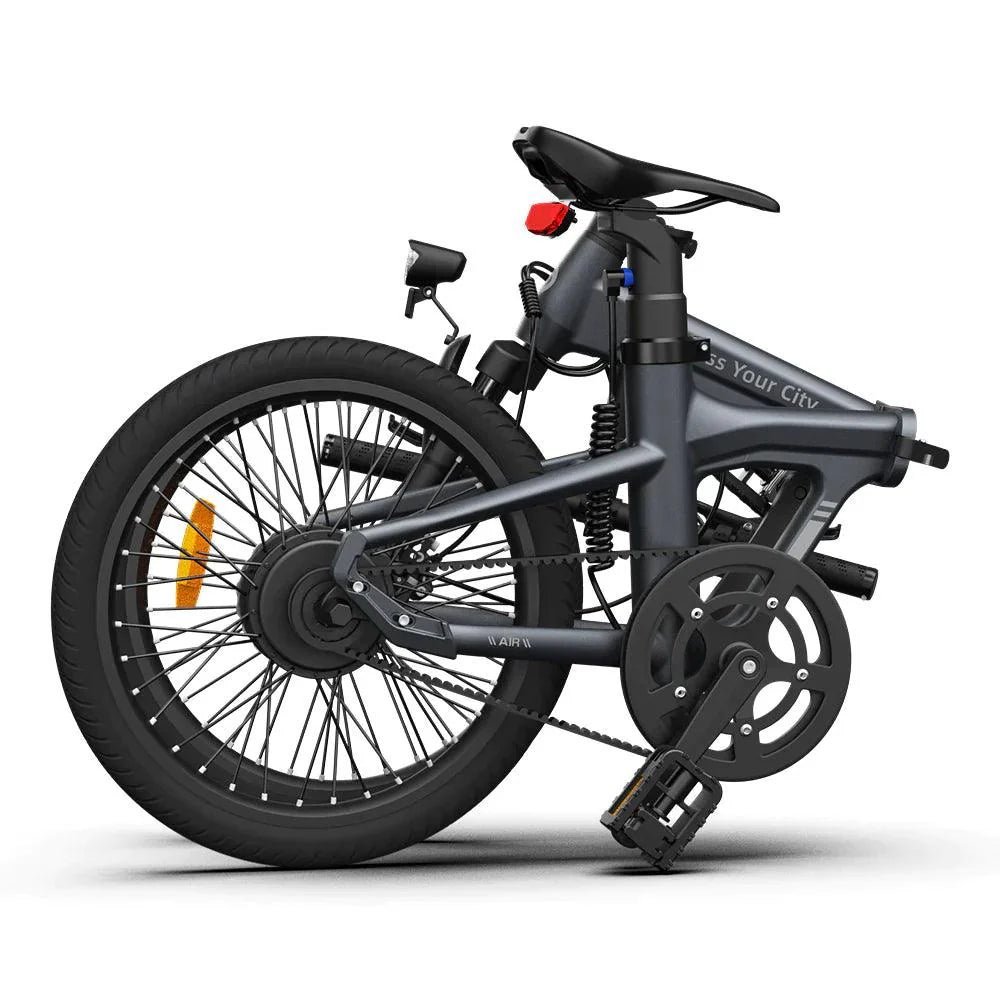

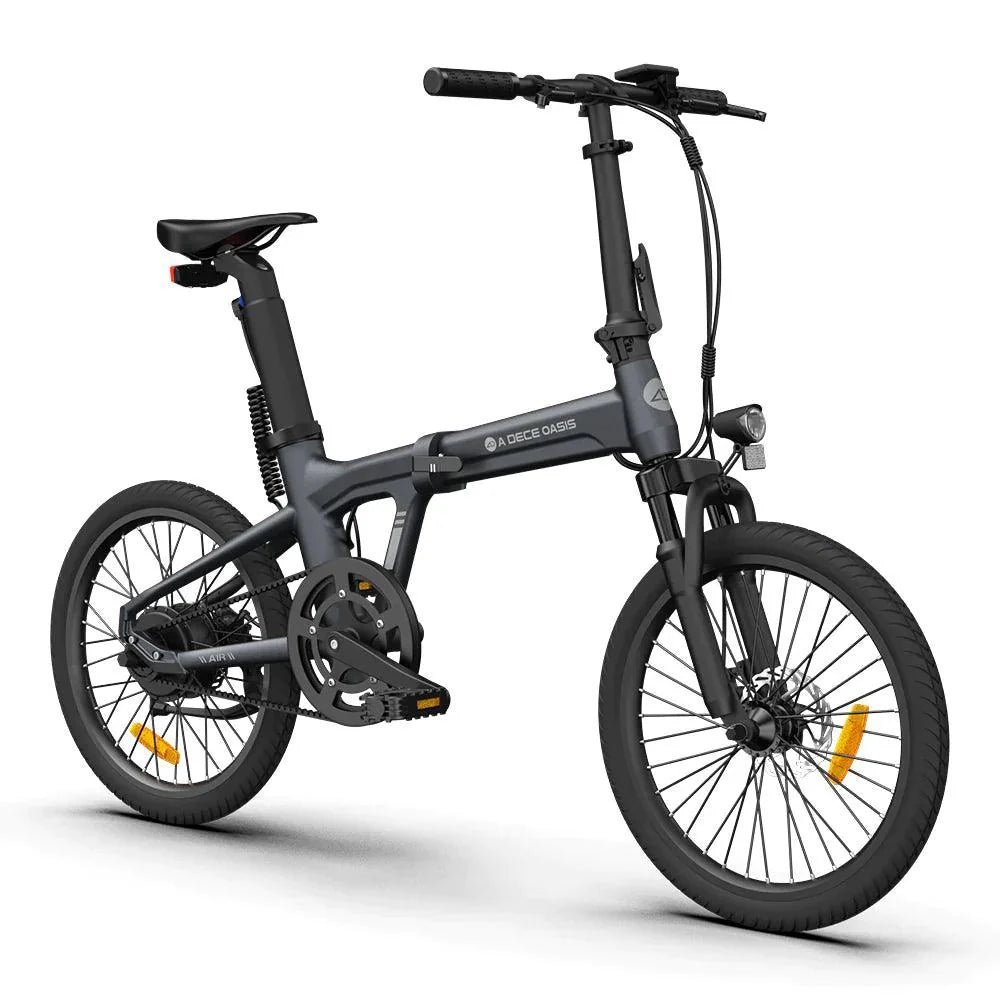

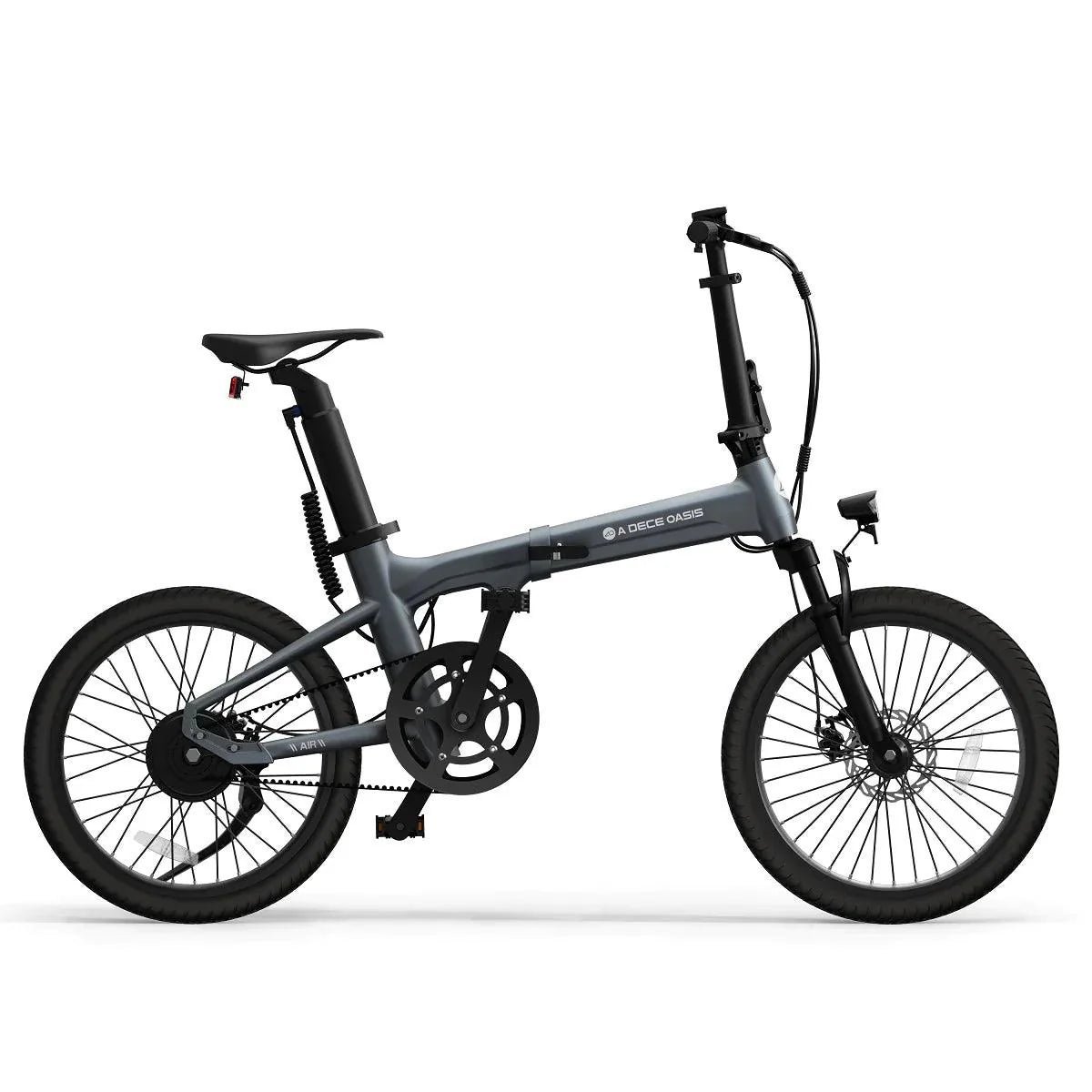

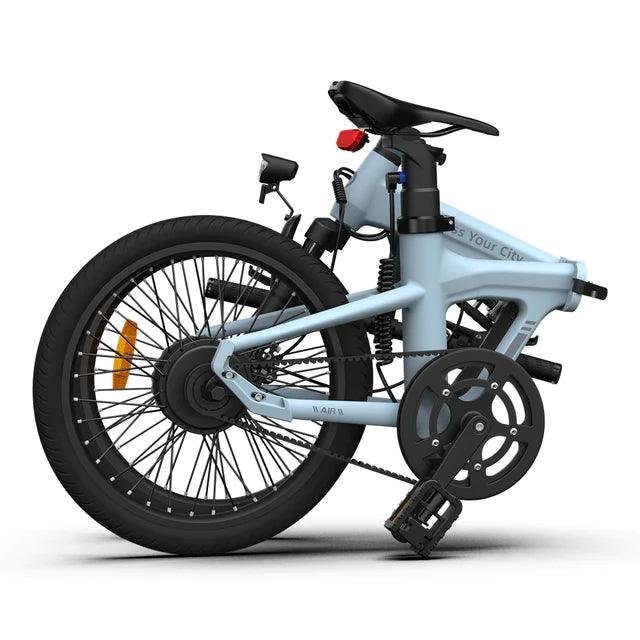

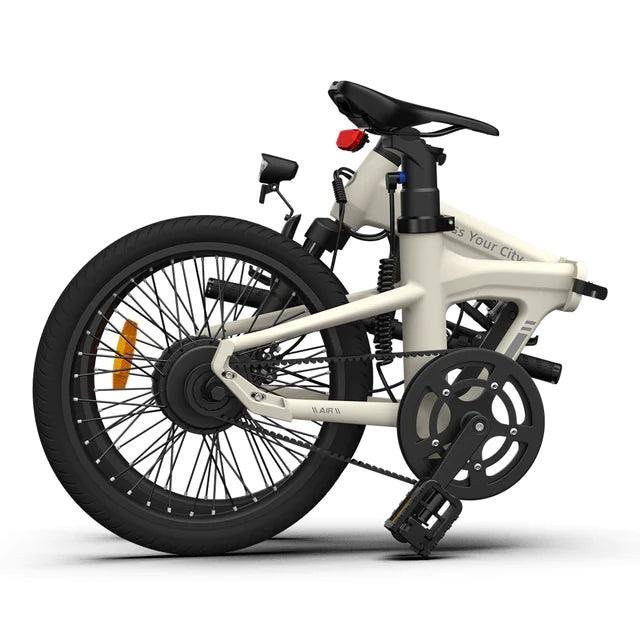

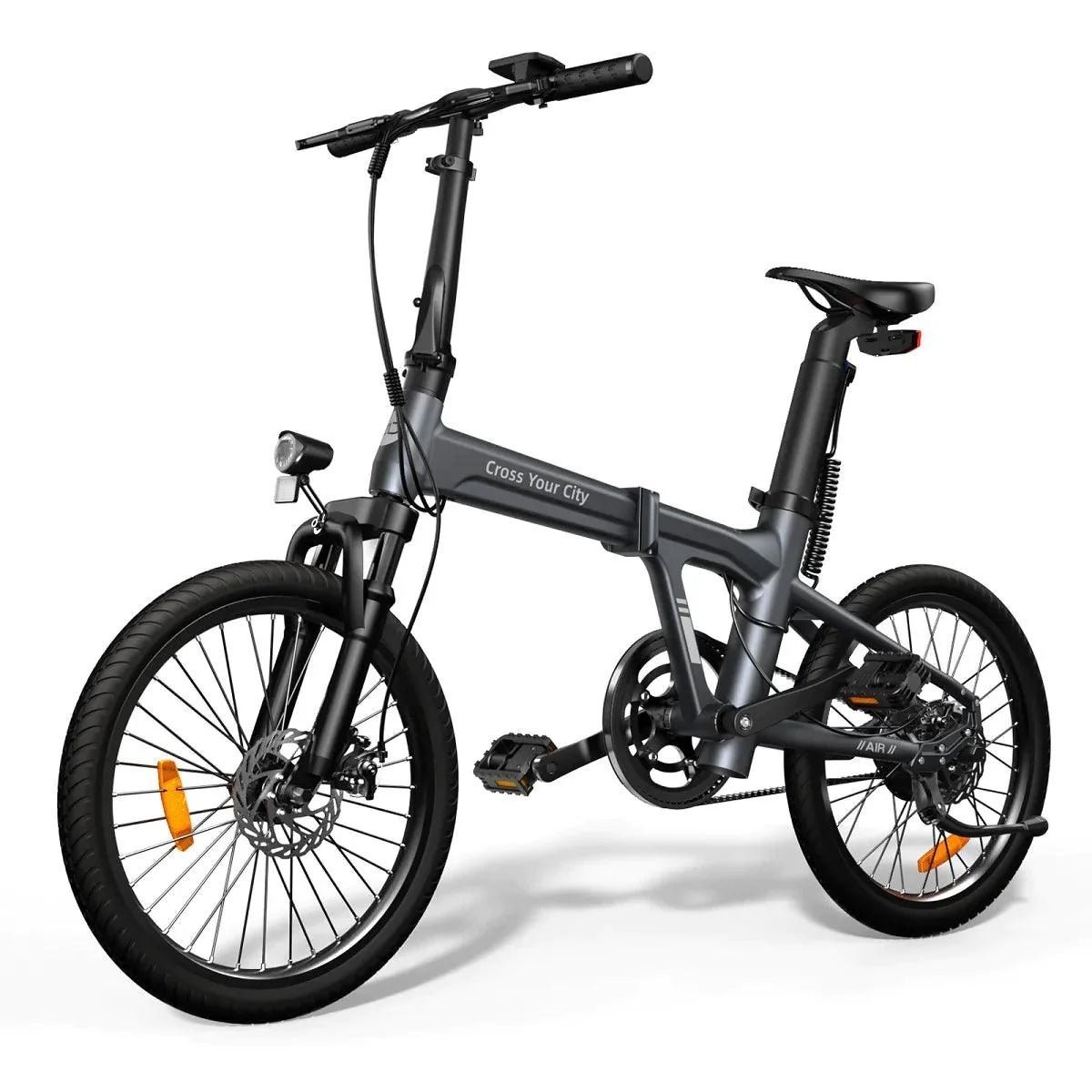

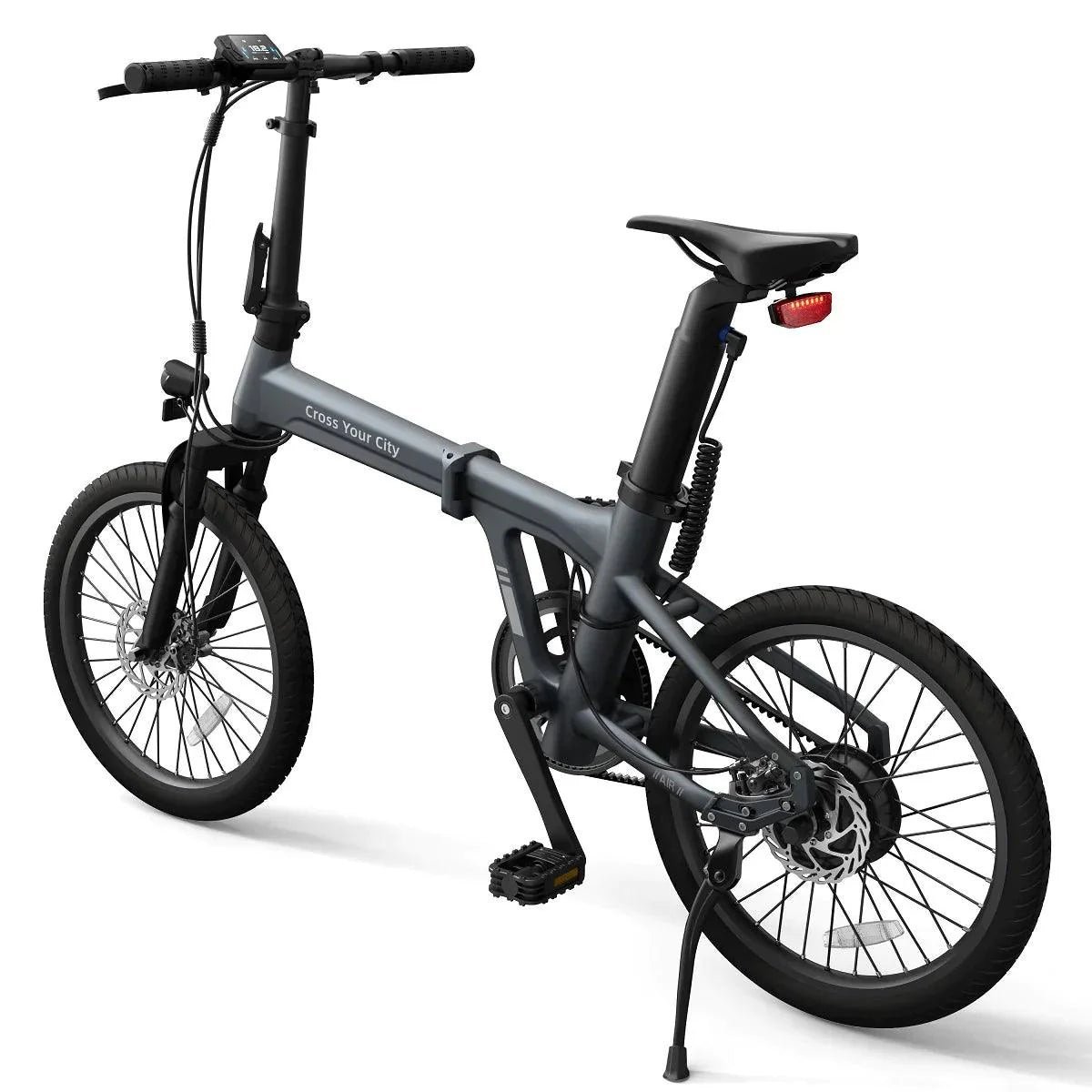

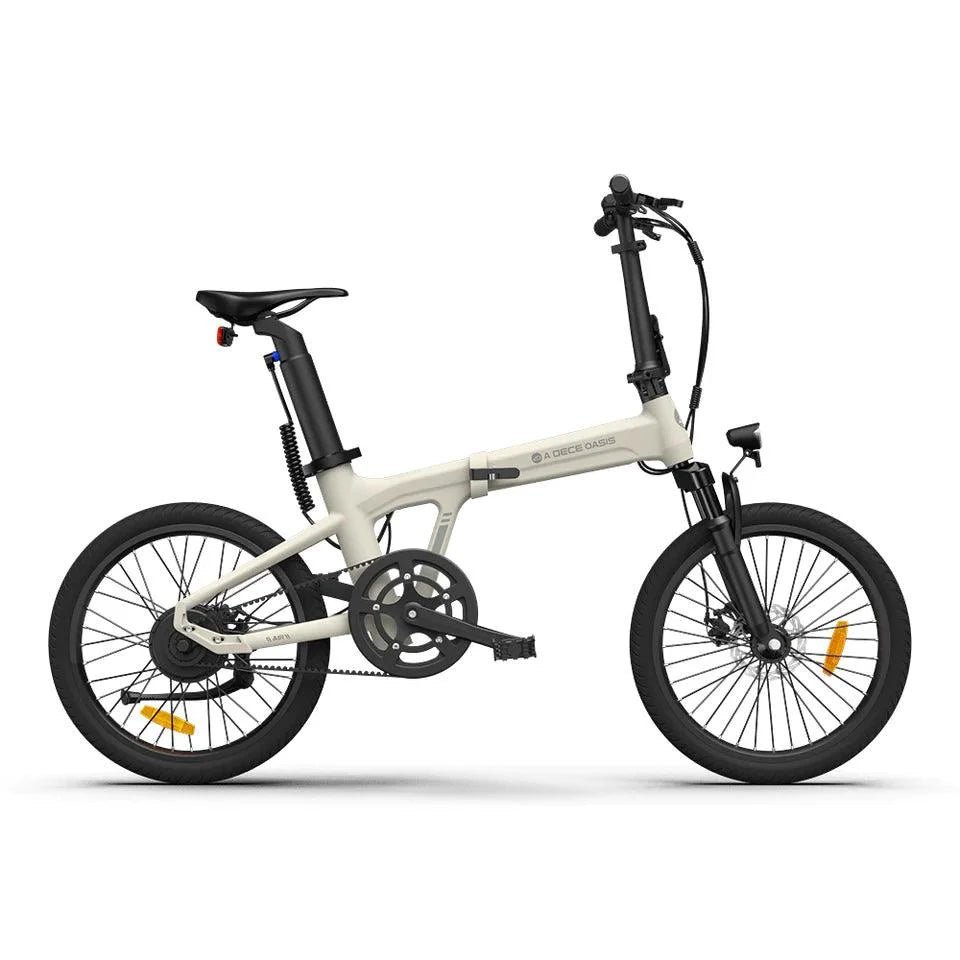

ADO Air 20S Folding Electric Bike
Original price was: £1,785.00.£1,346.00Current price is: £1,346.00.
Guaranteed Safe Checkout
Features & Compatibility
Comfortable and smooth
Always Feel in Control
Enjoy superior comfort with the Air 20S’s shock absorption system and experience smooth, noiseless braking with hydraulic disc brakes. Take control of your ride and your world with the Air 20S.
Small but powerful battery
Enjoy Pure Riding Fun
Samsung battery, maximum assist range of 100km. ADO Air 20S is ready to take you to every destination and enjoy the journey with your loved ones.
Quality is all about details
IPS Color Display
IPX7 waterproof & IPS color display, clearly under the sunshine.
|
Range |
100 km max range |
|
Speed |
25 km/h |
|
Net Weight |
18Â kg |
|
Certificate |
SGS CE |
|
Suspension |
Front fork suspension |
|
Transmission |
none |
|
Tyre Size |
20*1.95 Inch |
|
Pedal Assist |
Torque sensor |
|
Assist Intelligent |
0-3 level pedal assist |
|
Rider Heights |
150cm-200cm |
|
Weight Capacity |
120kg |
|
Working Temperature |
-10~50°C |
|
Motor |
CE Verison: 250W |
| Intl. Version: 350W | |
|
Battery |
Samsung 36V/9.6Â Ah |
|
Throttle |
CE Version：Without throttle |
| Intl. version：Thumb throttle | |
|
Charging Time |
4-6 hours |
|
Display |
IPS Color Display |
|
Torque |
CE Verison: 37N.m |
| Intl. Version: 42N.m | |
|
Frame |
Lightweight Aluminum Frame |
|
Brakes |
Hydraulic disc brakes |
|
Wheels |
Double Walled Aluminum |
|
Fork |
Standard |
|
Headlight |
IPX5 Waterproof 1200lumen |
|
Tail Light |
Relector Tail Light |
|
Chain Ring |
Carbon Belt |
|
Pedals |
Folding Pedals |
|
Seat |
Standard |
|
Waterproof |
IPX5 |
Size
| A: Seat Tube Length | B:Â Head Tube Length |
|---|---|
| 370mm | 330mm |
| C: Top Tube Length | D: Fork Length |
| 630mm | 310mm |
| E: Reach | F: Maximum Seat Height |
| 420mm | 960mm |
| G: Minimum Seat Height | H: Total Length |
| 740mm | 1560mm |
| I: Maximum Handlebar Height | J: Minimum Handlebar Height |
| 1150mm | 1020mm |
| K: Standover Height | L: Wheel Diameter |
| 600mm | 510mm |
| M: Wheelbase | N: Chainstay Length |
| 1060mm | 410mm |
